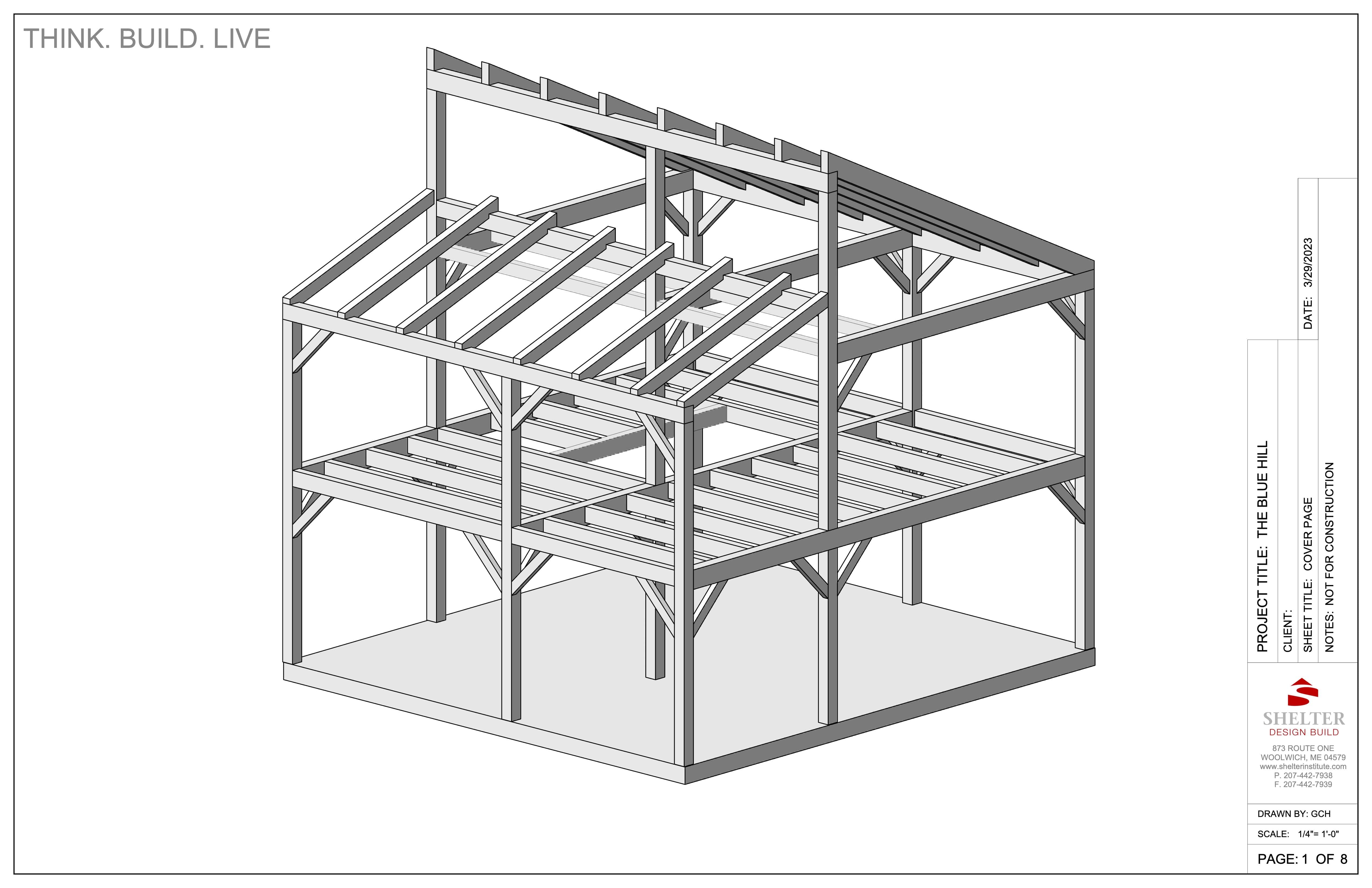

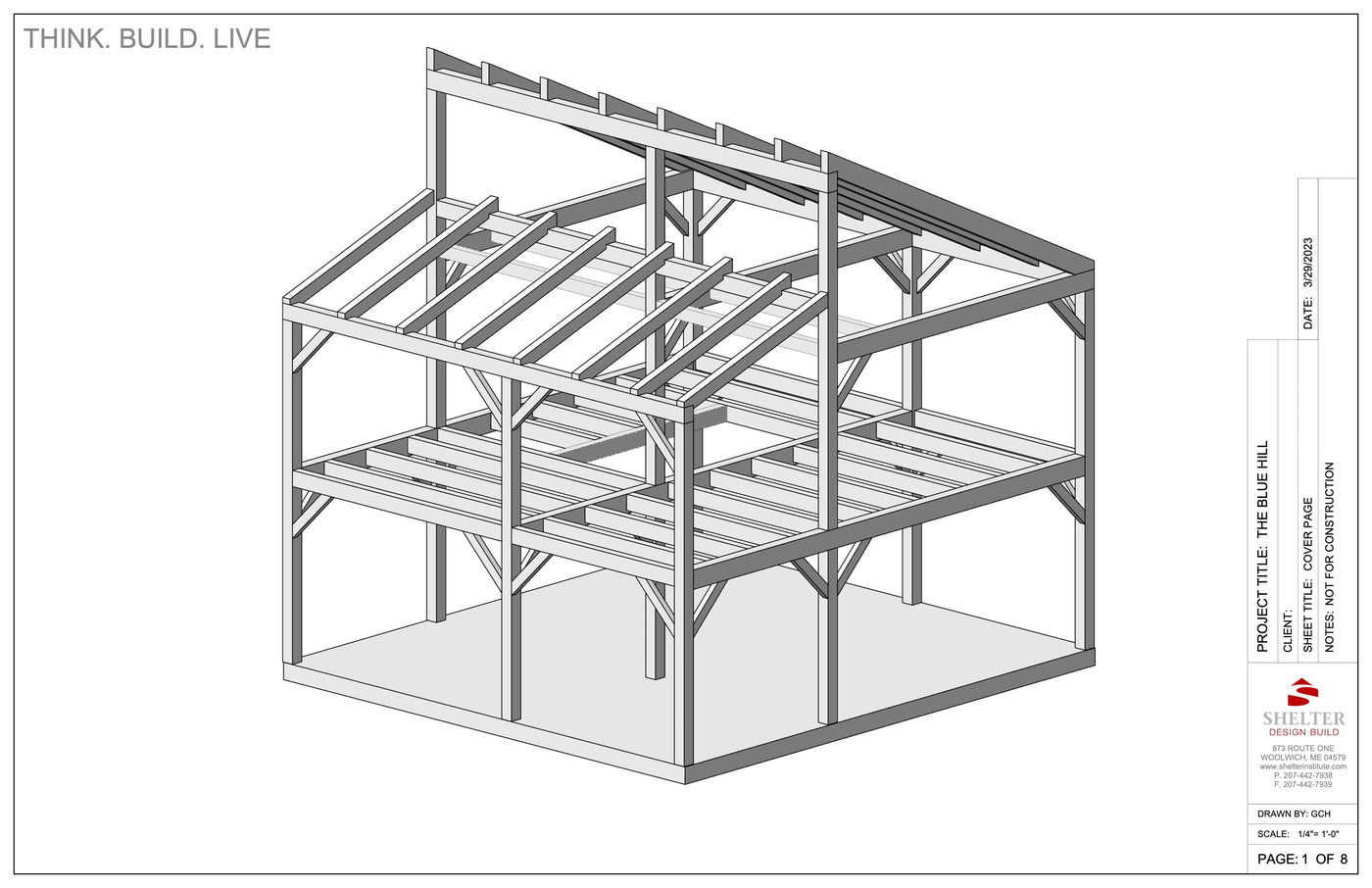

The Timber Frame Cut Sheet Package 28x30 Clerestory by Shelter Institute features a custom two-story design with exquisite visible rafters and beams in the "The Blue Hill" 3D architectural drawing, enhancing the structure's elegance.

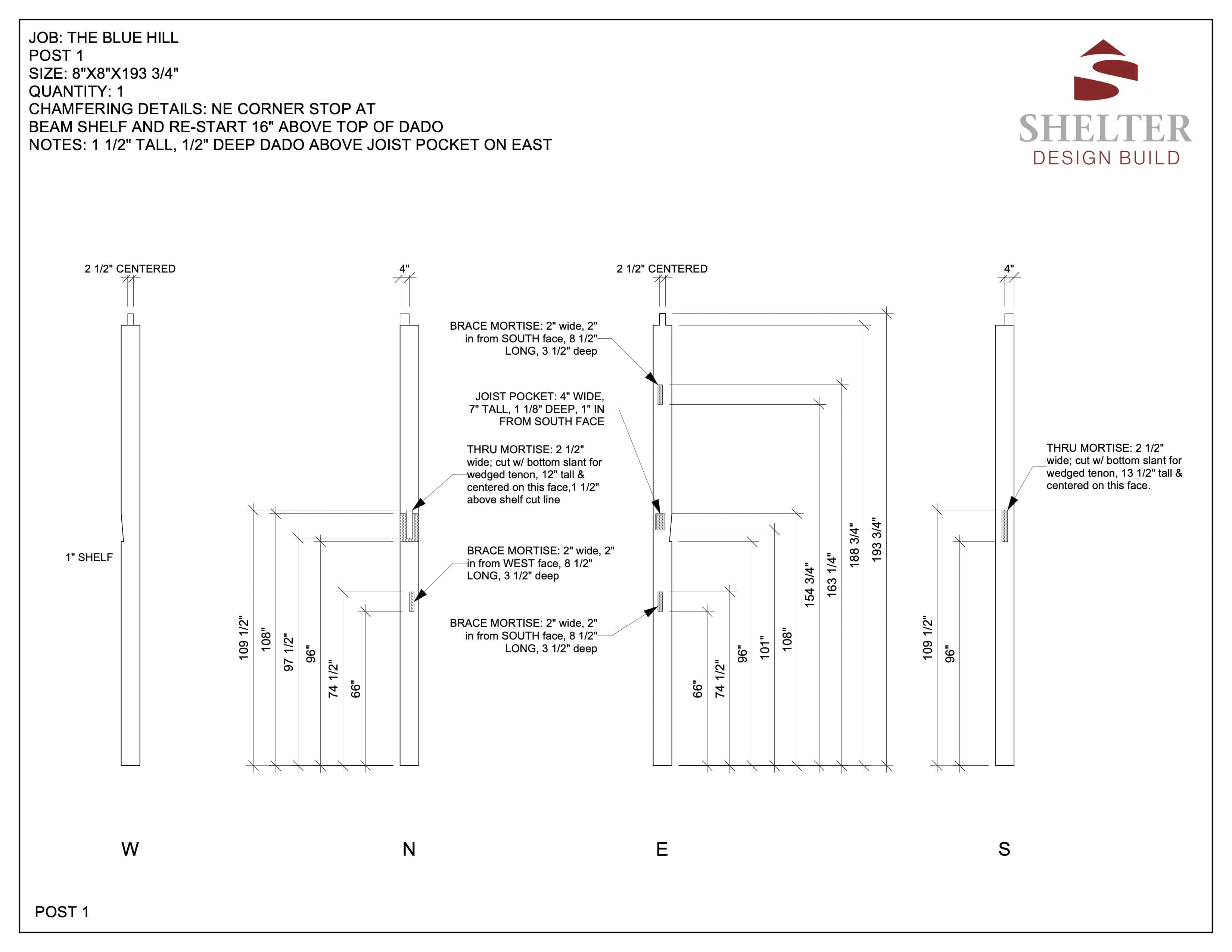

Shelter Institute's Timber Frame Cut Sheet Package 28x30 Clerestory provides detailed measurements and features, including labeled north, south, east, and west orientations. It includes custom-designed clerestory timber frame elements to enhance natural light while complementing elevation framing plans.

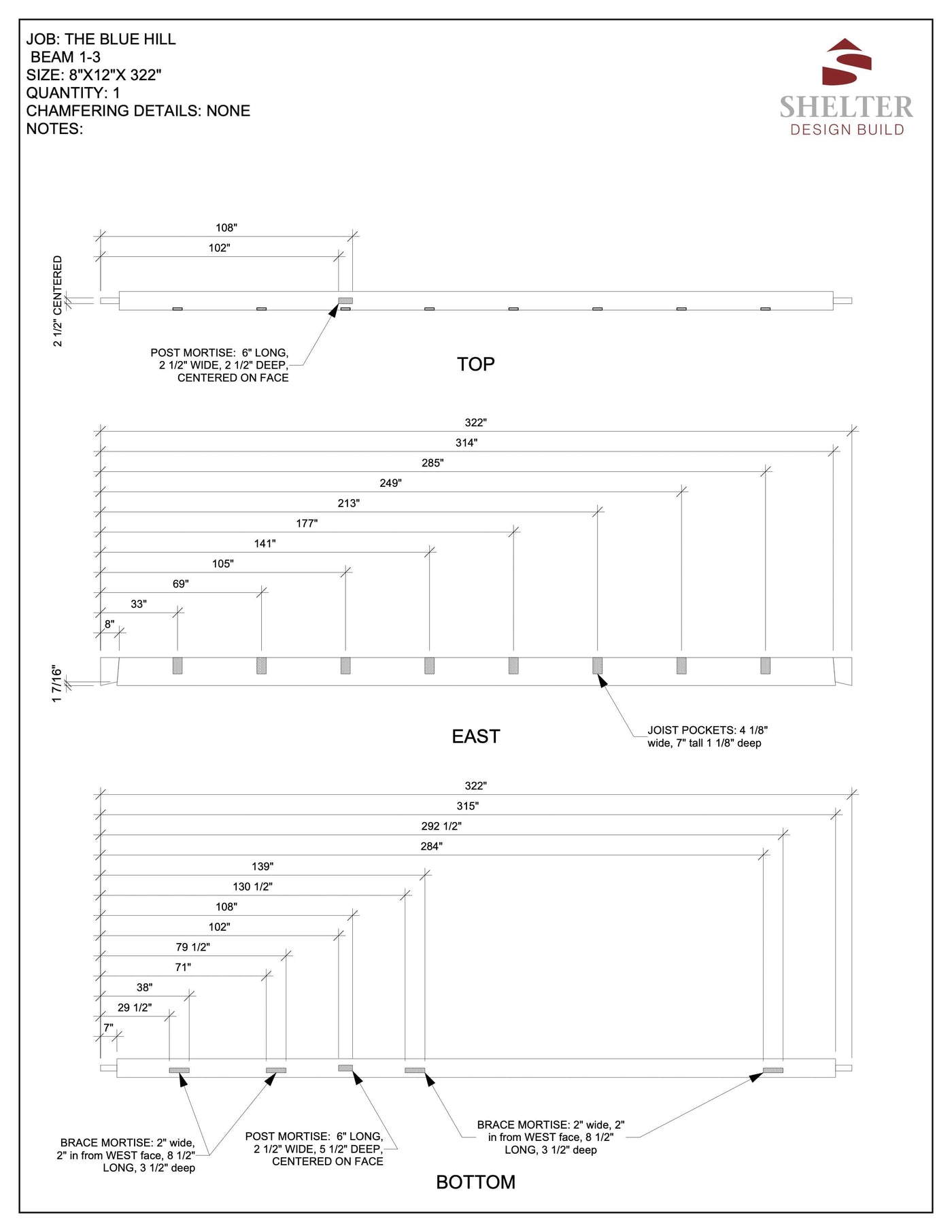

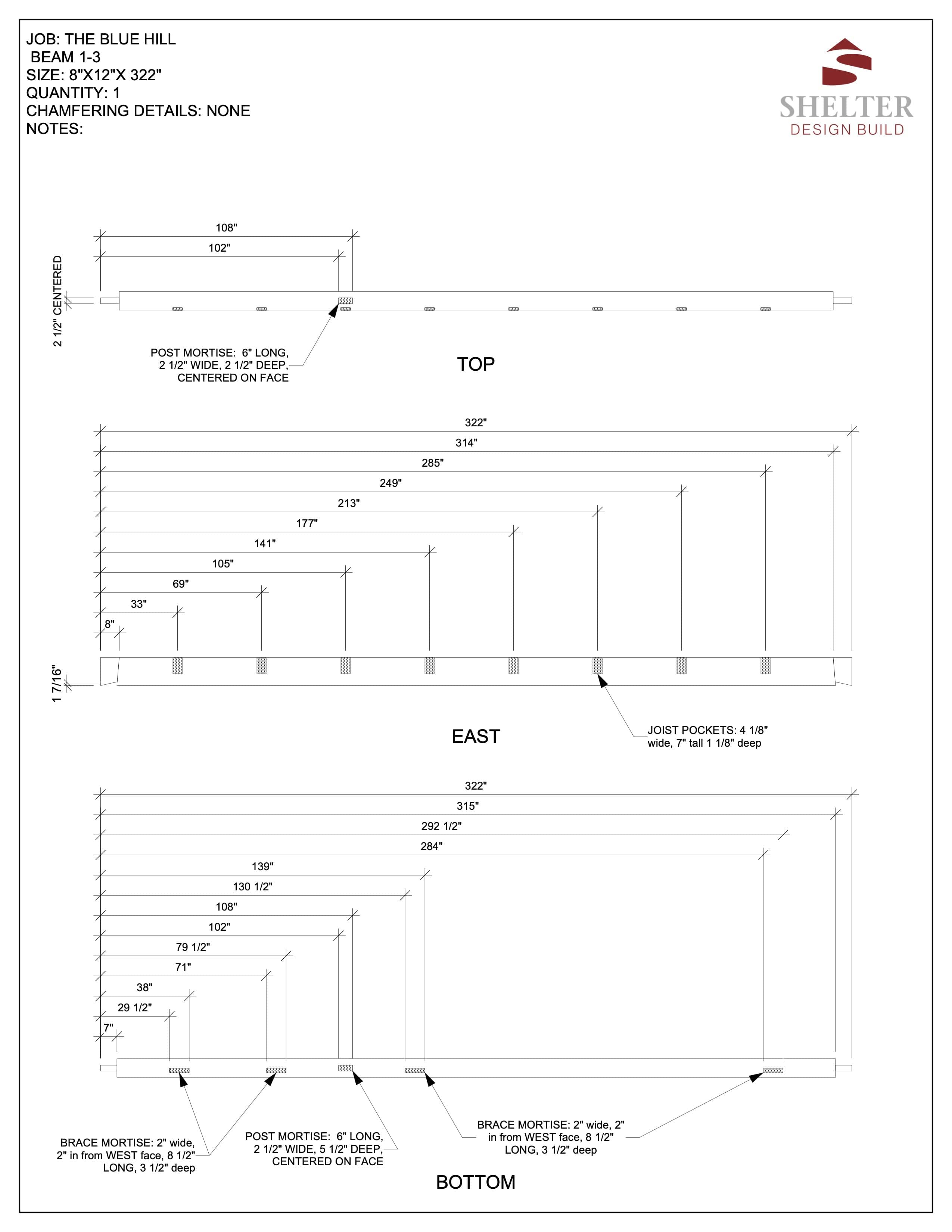

The Timber Frame Cut Sheet Package 28x30 Clerestory by Shelter Institute offers a detailed blueprint of "The Blue Hill" beam installation with clerestory timber elements. It includes top, east, and bottom views with precise measurements and notes, prominently featuring the Shelter Institute's logo.

Timber Frame Cut Sheet Package 28x30 Clerestory

From $729.00 $0.00 /
Subscription
Only 2 in stock
Available for pickup
In stock at 873 US-1, Woolwich, ME 04579 · Usually ready in 24 hours

In stock at 873 US-1, Woolwich, ME 04579

Timber Frame Cut Sheet Package 28x30 Clerestory

Available for pickup

873 US-1, Woolwich, ME 04579

Usually ready in 24 hours

873 U.S. 1
Woolwich ME 04579
United States

+12074427938

Our Cut Sheet Package includes a fully detailed drawing of each unique timber so that you have all the information you need to cut out this 28'x30' Clerestory timber frame. The packet includes a detailed lumber and fastener list as well as the specifications of each joint. This structure is 27'5" feet x 29'6-1/2-"-feet from outside-of-post to outside-of-post. This frame makes which offers 840 square feet on the first floor and another 840 square feet on the second floor make for a lovely living space with lots of natural light

If you have attended one of our in-person classes or our online course, than you know the level of detail you can expect in this package. Cut sheets come with the elevation framing plans, joinery details, lumber list, fasteners list and peg locations.

If this building is not exactly the style you would like, our design team are happy to create a custom design with your input.

Upon purchase of this set of cut sheets, you will receive a PDF of them to print as well as a hard copy via mail. These are engineered plans created by a P.E. licensed in the State of Maine. If you are building outside of Maine, you may be required to have a P.E. local to your site sign off on the plans. Please verify this with your local Codes Enforcement prior to purchase as this item is non refundable.
