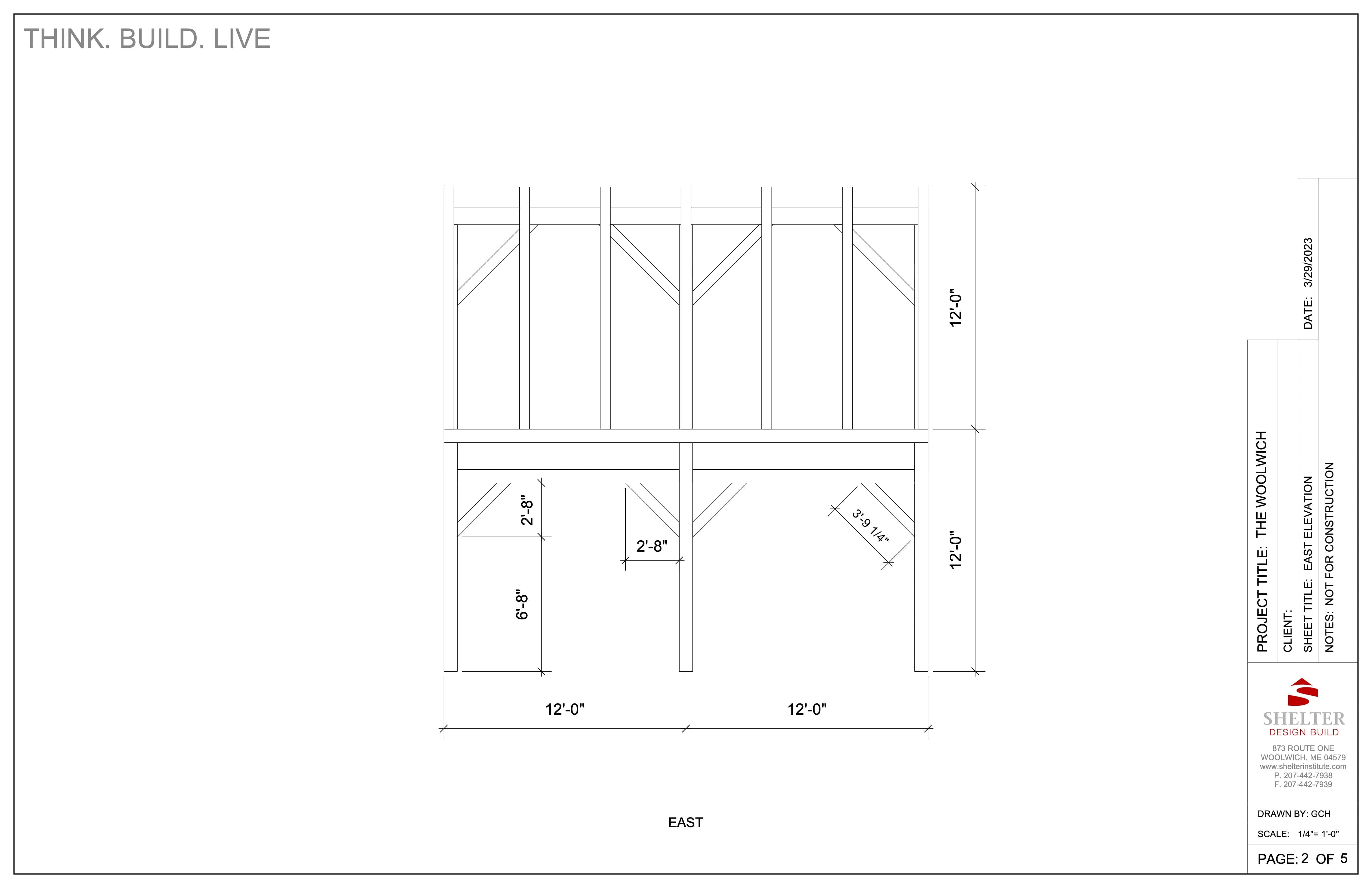

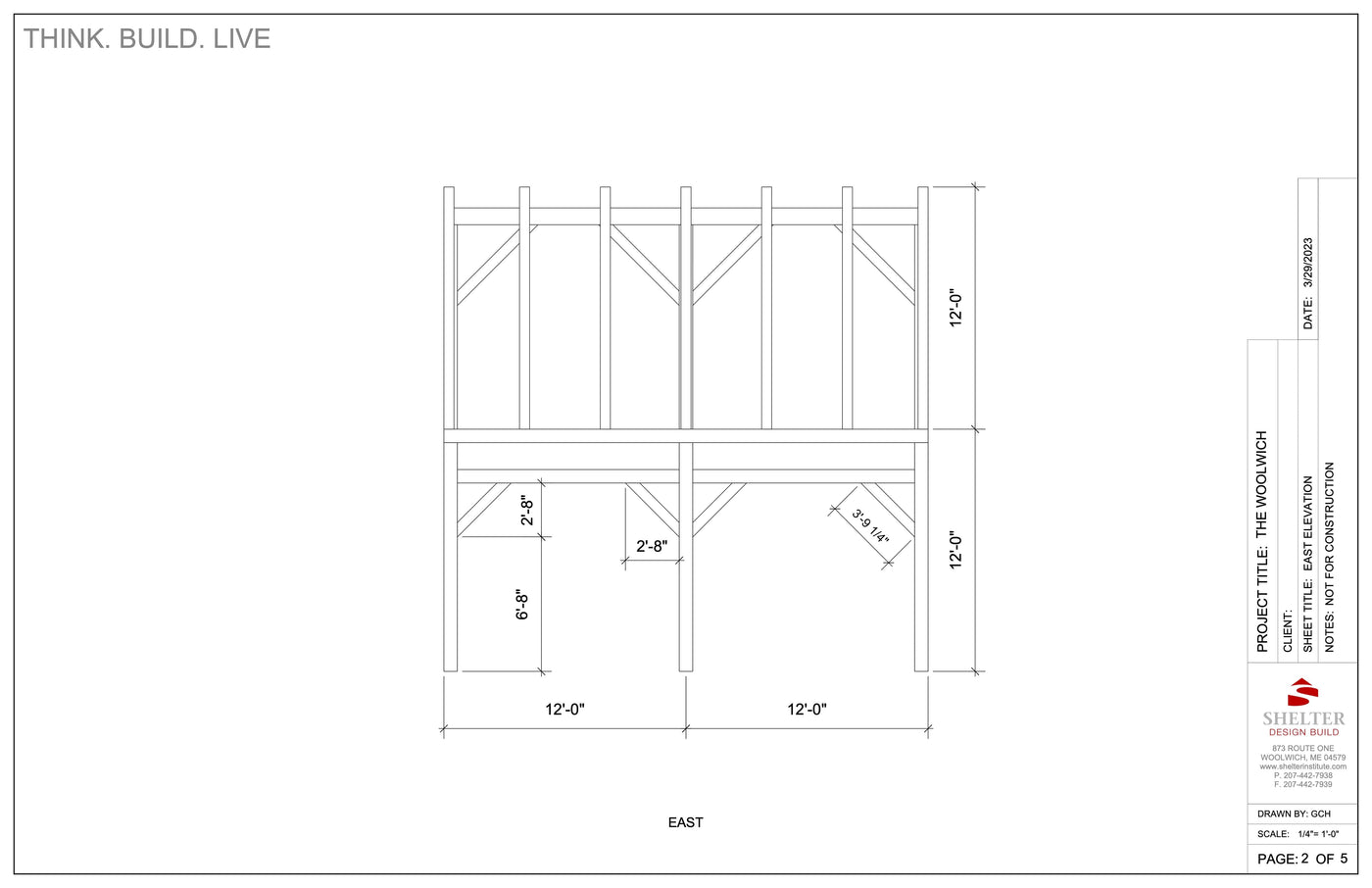

Architectural drawing titled "East," showing the structure's front view with dimensions and a classic ridge beam design. Part of the Timber Frame Cut Sheet Package 24x24 by Shelter Institute.

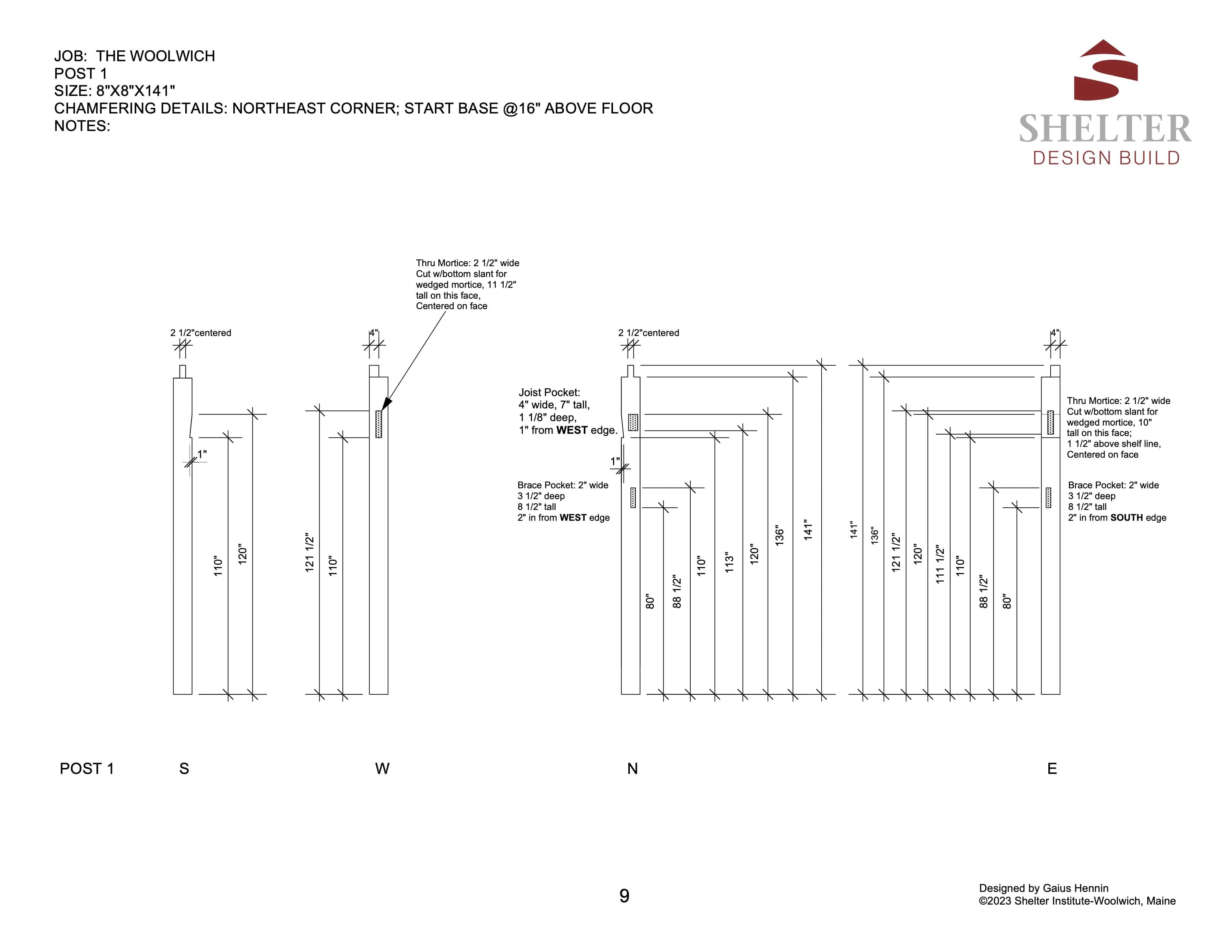

The "Timber Frame Cut Sheet Package 24x24" by Shelter Institute showcases architectural drawings labeled "The Woolwich," detailing classic post and joint features, precise measurements, directional markers (S, W, N, E), and a prominent ridge beam for enhanced kit frame stability.

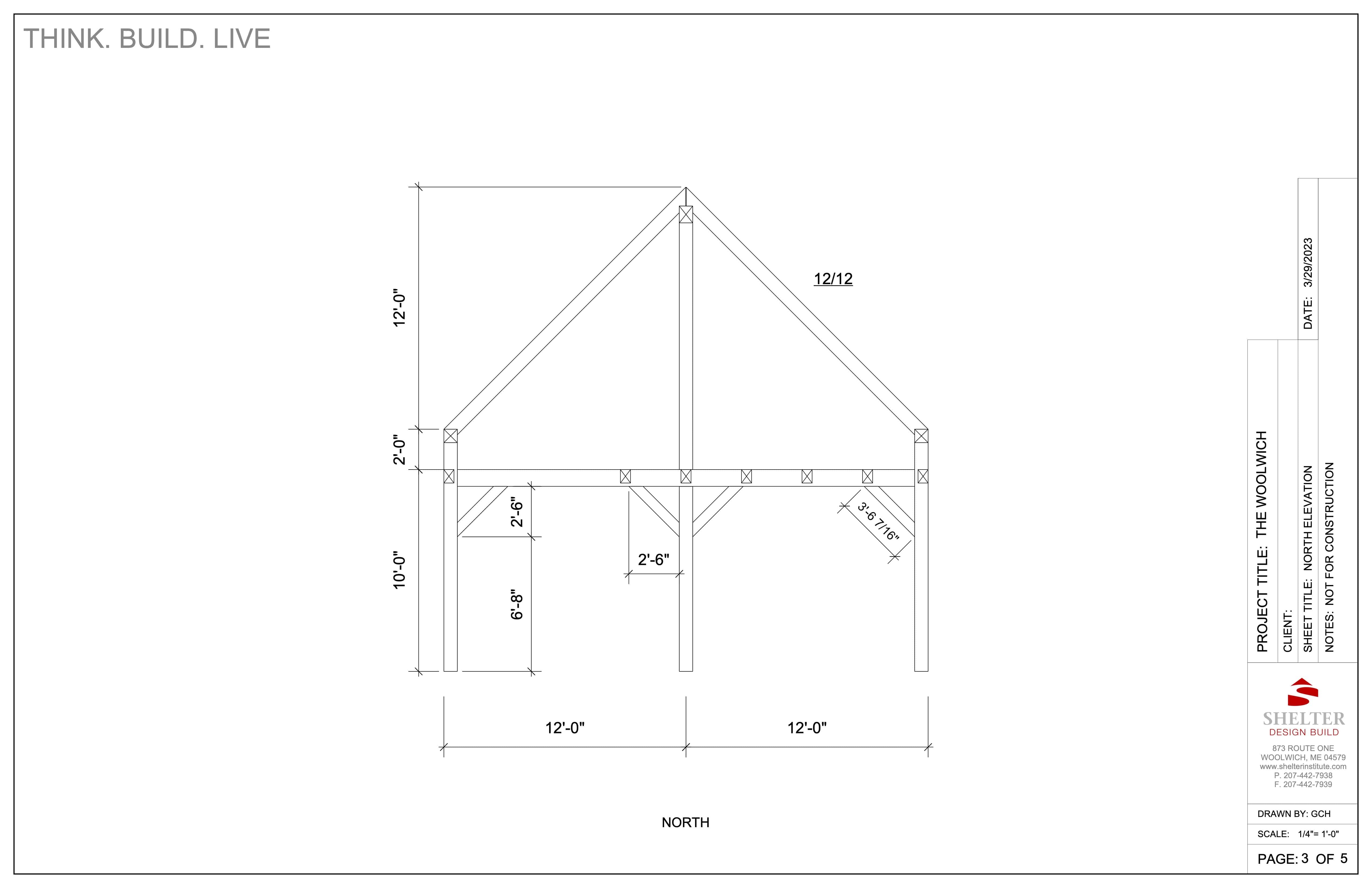

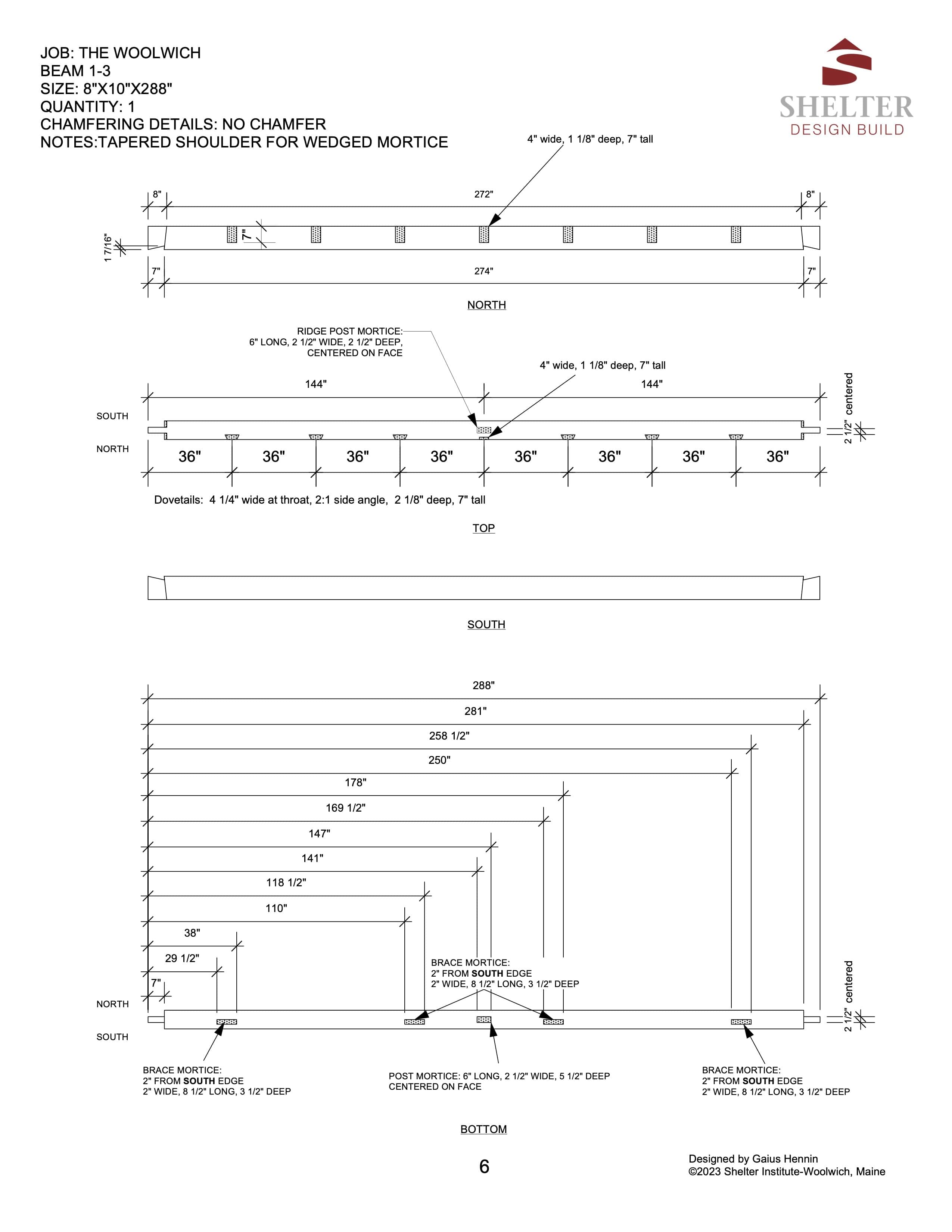

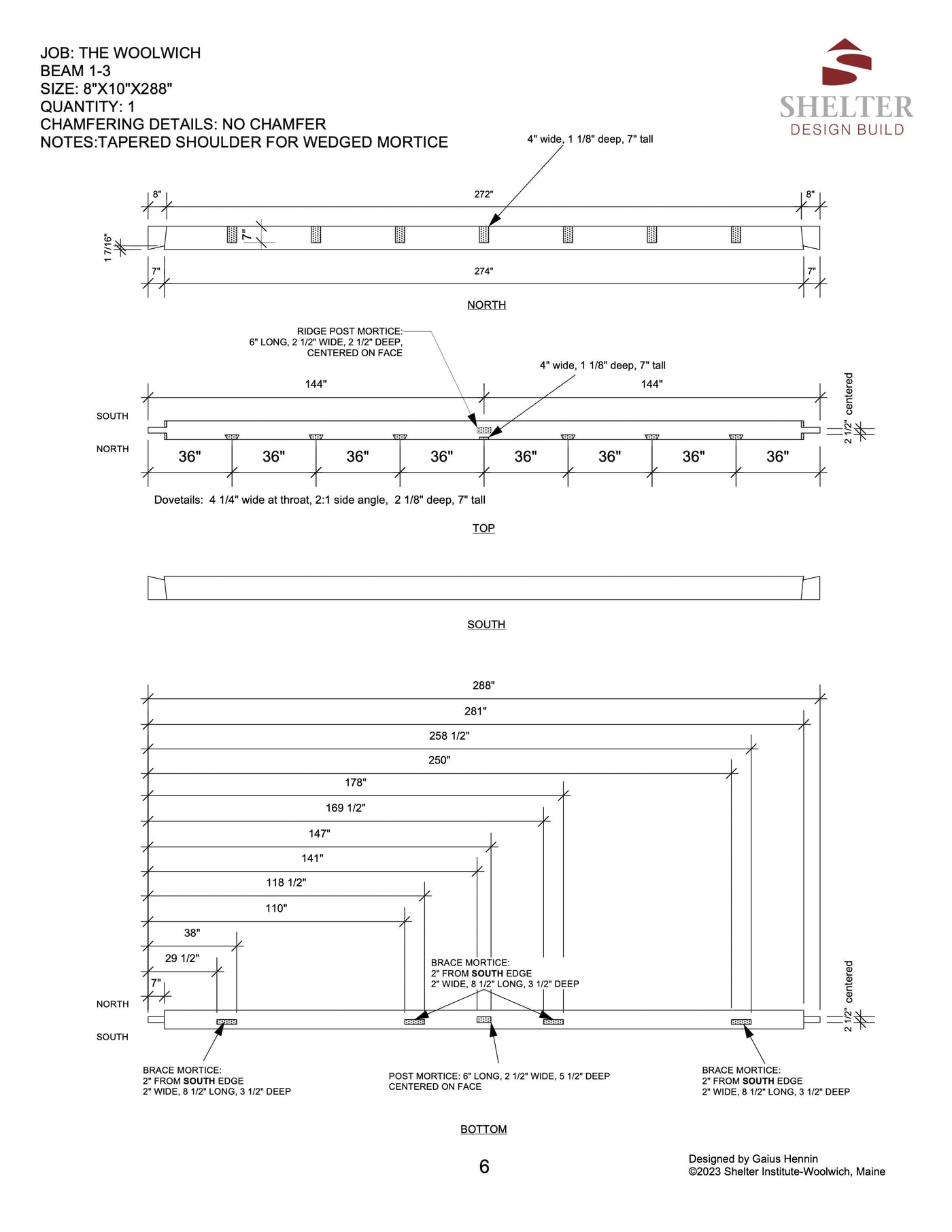

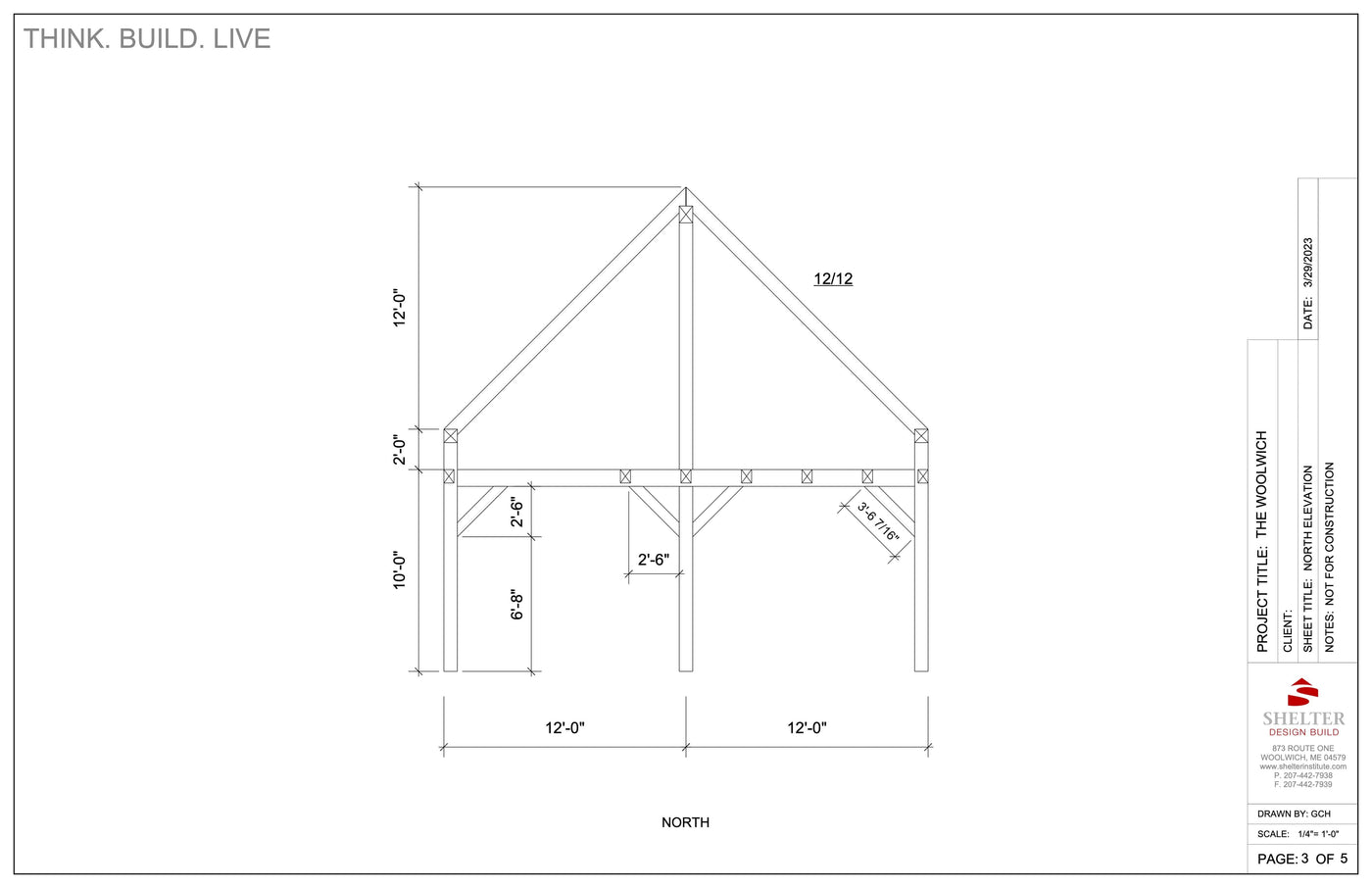

Architectural design specifications for the ridge beam titled "Timber Frame Cut Sheet Package 24x24" by Shelter Institute, featuring classic measurements and chamfering details.

Timber Frame Cut Sheet Package 24x24

$578
Available for pickup
In stock at 873 US-1, Woolwich, ME 04579 · Usually ready in 24 hours

This is our classic kit frame reinforced with a ridge beam.

Specifications
Over All Height: 24-Ft
Width: 24-Ft
Length 24-Ft
Kneewall: 2-Ft
First Floor Clearance: 9-Ft 4-in
