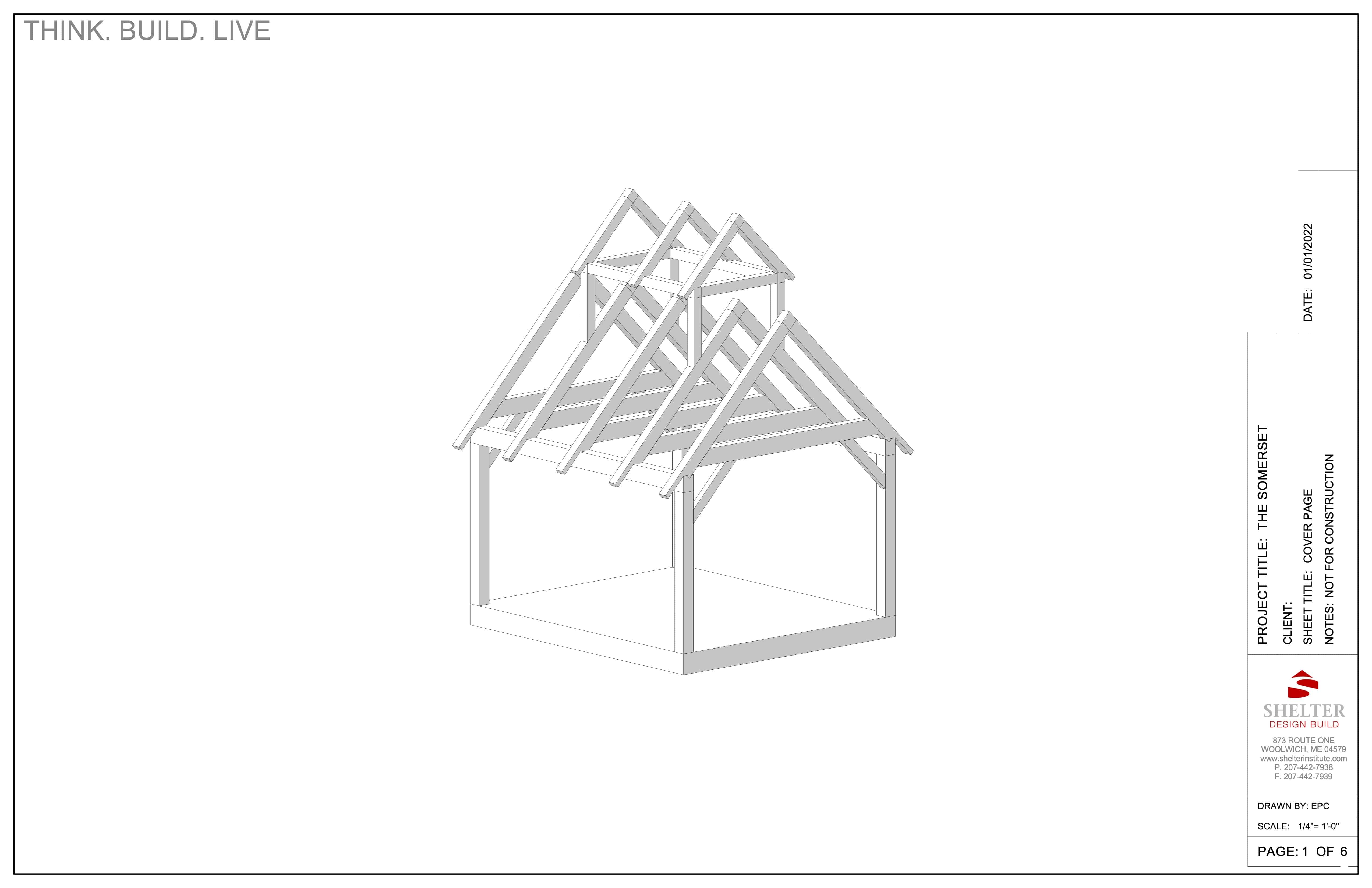

The Somerset 14x16 Timber Frame Plans & Cut Sheet Package from Shelter Institute showcases a gabled roof and structural elements on a white background, reminiscent of a traditional sugar shack.

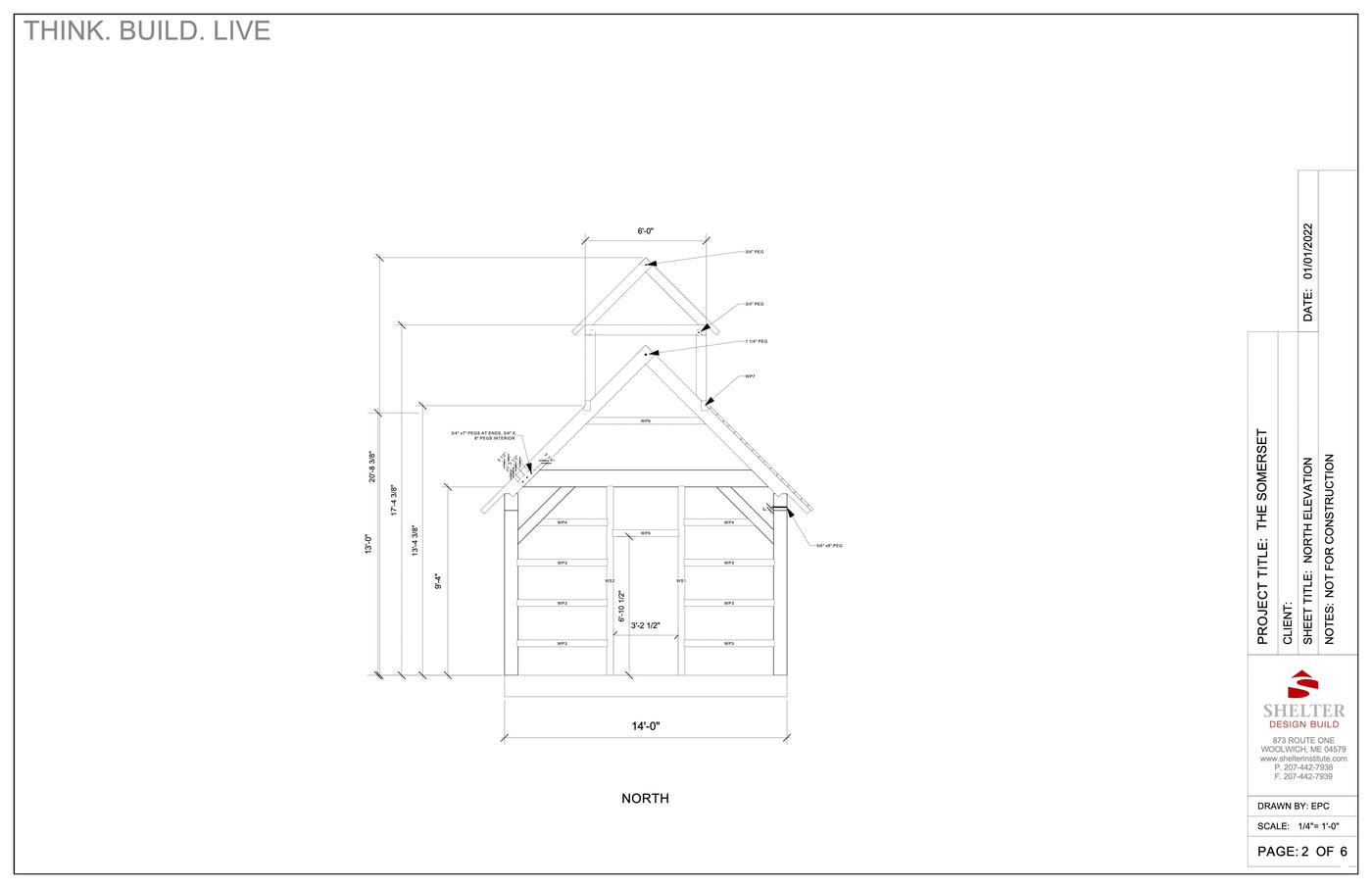

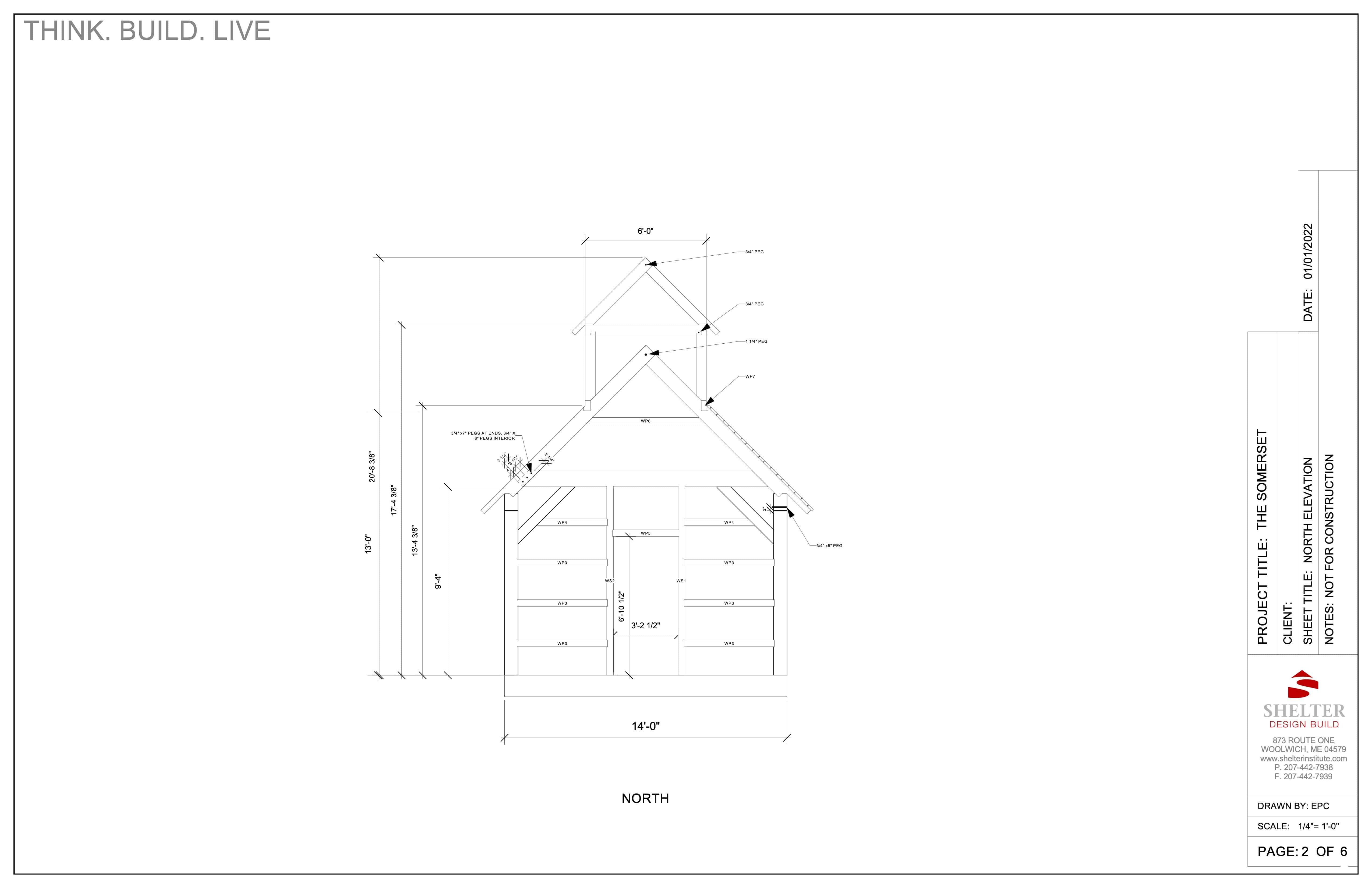

Blueprint for "The Somerset 14x16" from Shelter Institute, detailing a treehouse structure with labeled measurements and a sturdy Eastern White Pine frame. Titled "The Dwelling," it evokes sugar shack charm. Date: 07/05/2023. Page 2 of 6.

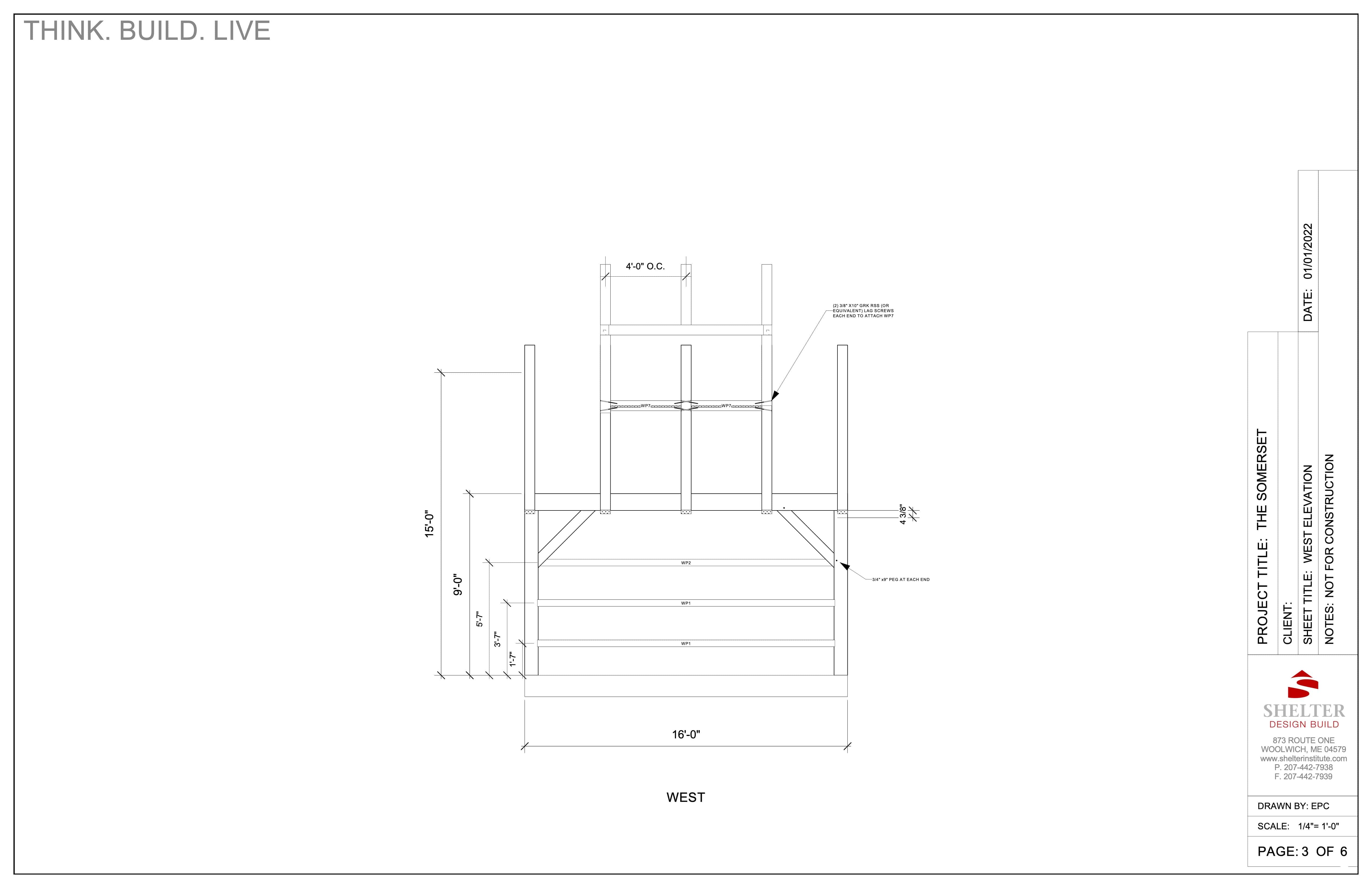

A blueprint of the west elevation for "The Somerset 14x16" by Shelter Institute, featuring a robust Eastern White Pine timber frame with detailed dimensions and structural labels.

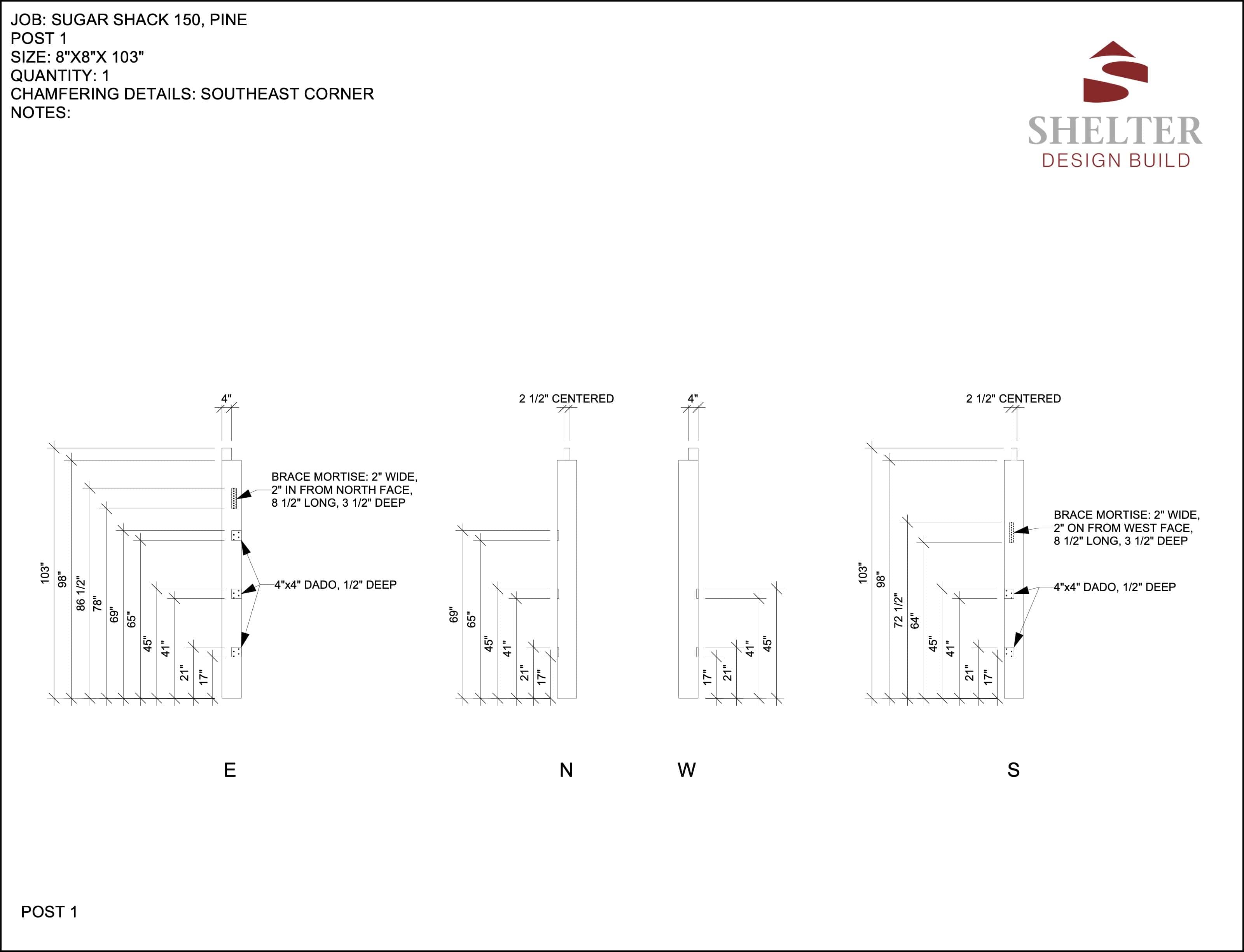

The Somerset 14x16 Timber Frame Plans & Cut Sheet Package by Shelter Institute features a technical diagram detailing construction for building facades (E, N, S, W) with component measurements like mortise and dado. It highlights timber frame techniques using Eastern White Pine.

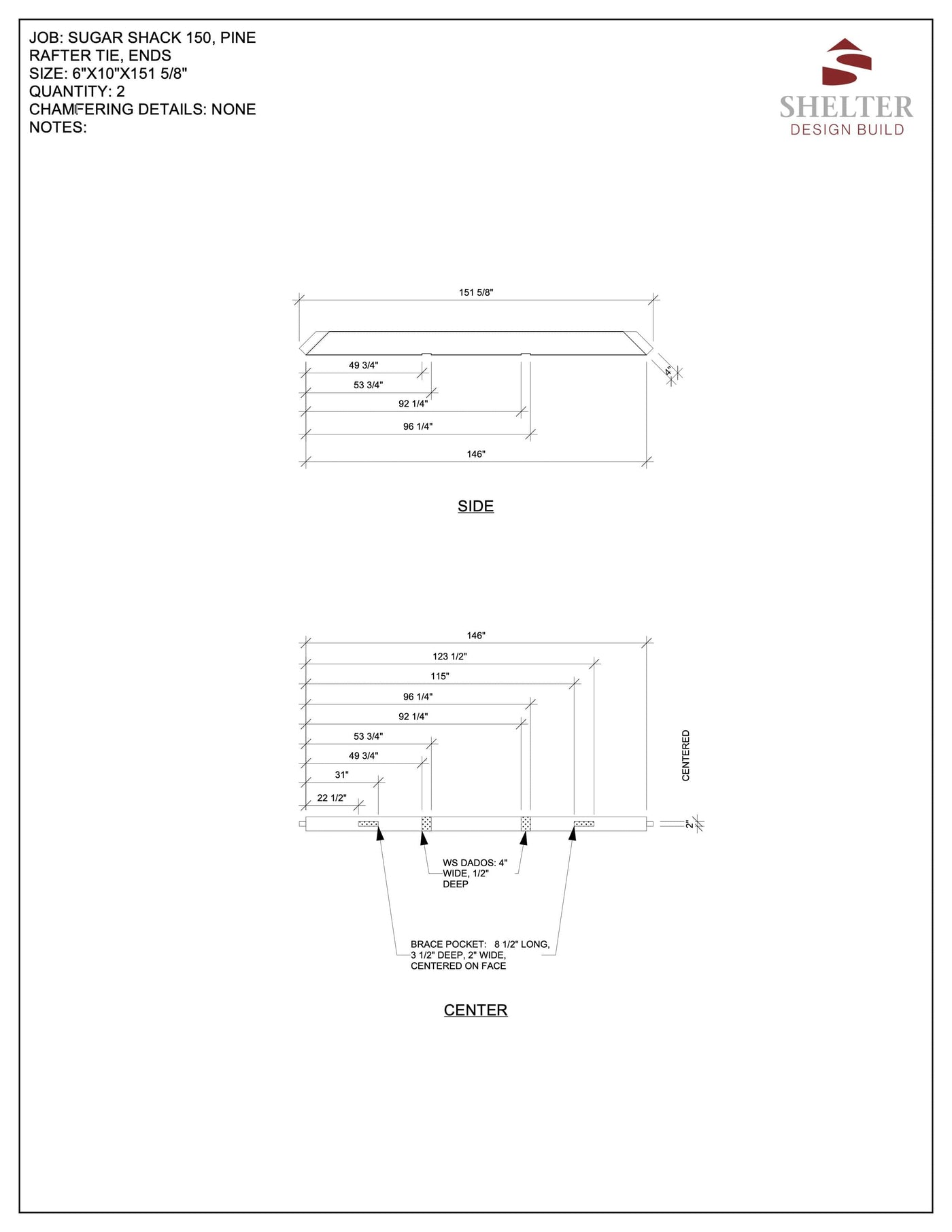

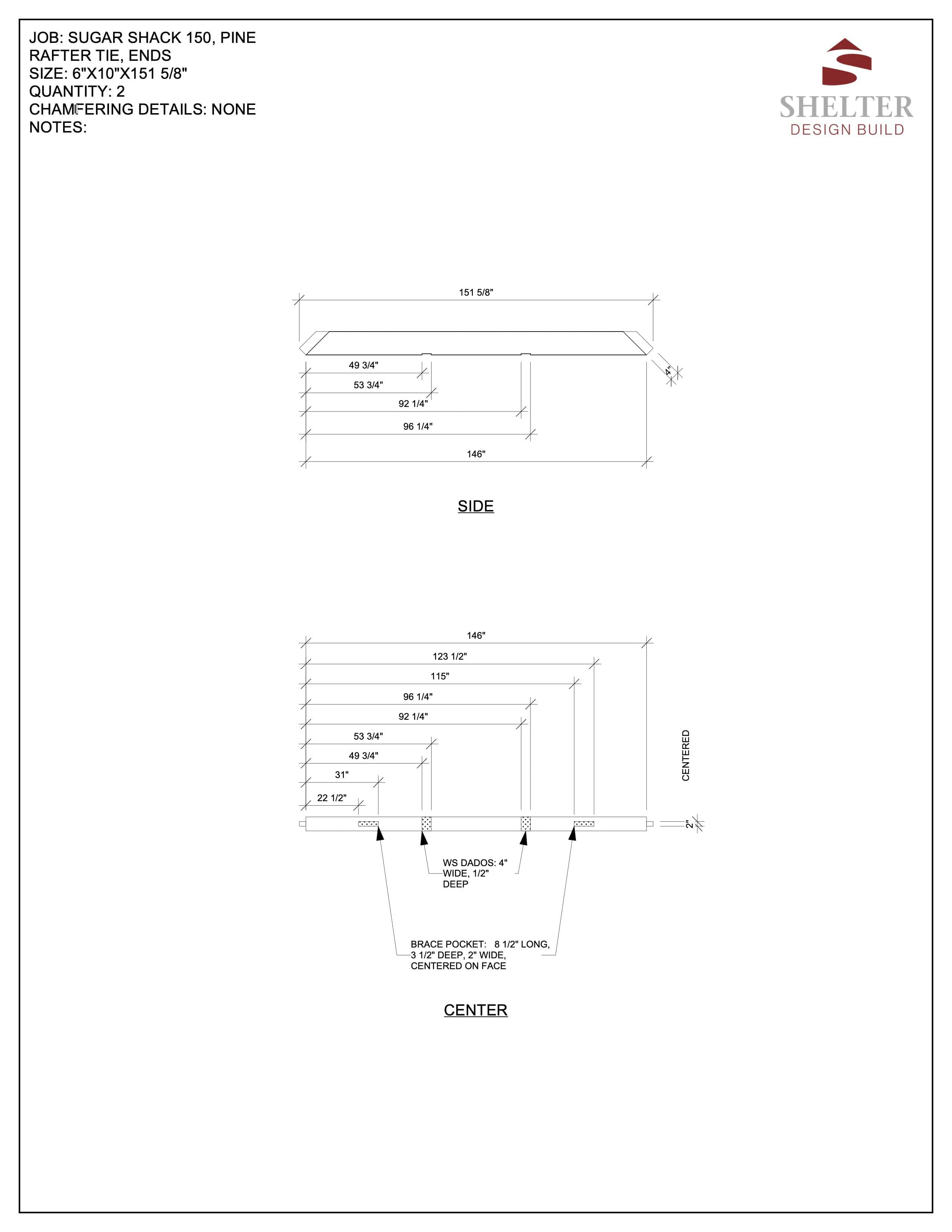

Technical drawings of a timber frame structure using Eastern White Pine, with labeled dimensions for side and center views. Created by Shelter Institute for The Somerset 14x16: Timber Frame Plans & Cut Sheet Package.

The Somerset 14x16: Timber Frame Plans & Cut Sheet Package

From $513.00 $0.00 /
Subscription
Available for pickup
In stock at 873 US-1, Woolwich, ME 04579 · Usually ready in 24 hours

In stock at 873 US-1, Woolwich, ME 04579

The Somerset 14x16: Timber Frame Plans & Cut Sheet Package

Available for pickup

873 US-1, Woolwich, ME 04579

Usually ready in 24 hours

873 U.S. 1
Woolwich ME 04579
United States

+12074427938

A lot of research went into the design of this little timber frame. The driving focus for the design is a sugar shack for boiling sap. This is the smallest recomended footprint for a sugar house, assuming you have fewer than 150 taps.

Of course this building is wonderful for any number of acticities. The cupola affords light and ventilation in the center of the building and the high ceilings on the first level provide a spacious feel.

This frame is designed using Eastern White Pine, full dimension timbers.

Specifications:
Footprint: 224 sq Ft
Overall Height with Cupola: 20-ft 8-3/4-in
First Floor Ceiling Heigh: 9-ft 4-in
Width: 14-ft
Length: 16-ft
