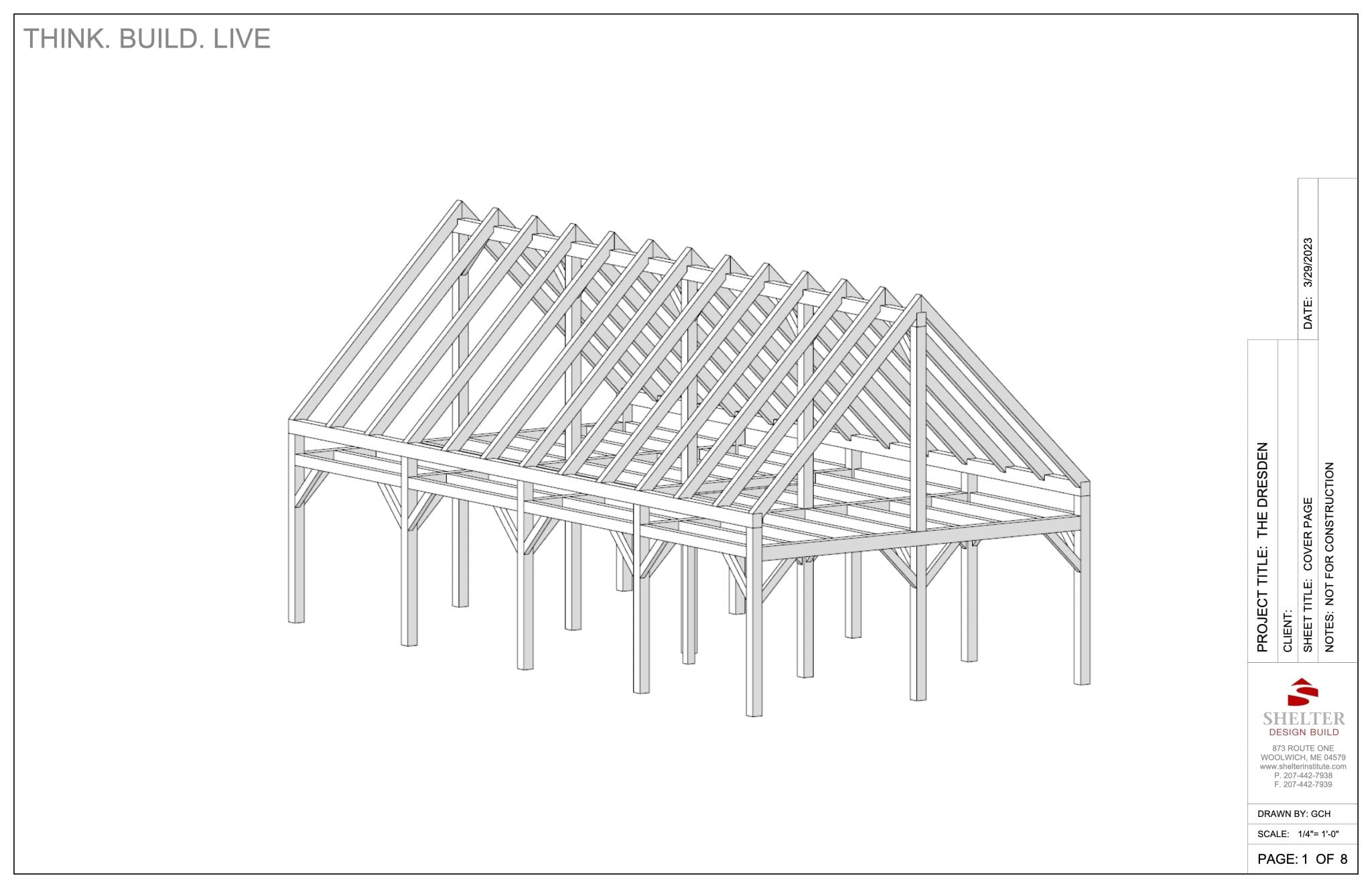

The Timber Frame Cut Sheet Package 24 x 48 Stable Gable by Shelter Institute features an isometric blueprint of a wood frame building with a gabled roof, detailing 16 Eastern White Pine posts and beams connected using scarf-joints.

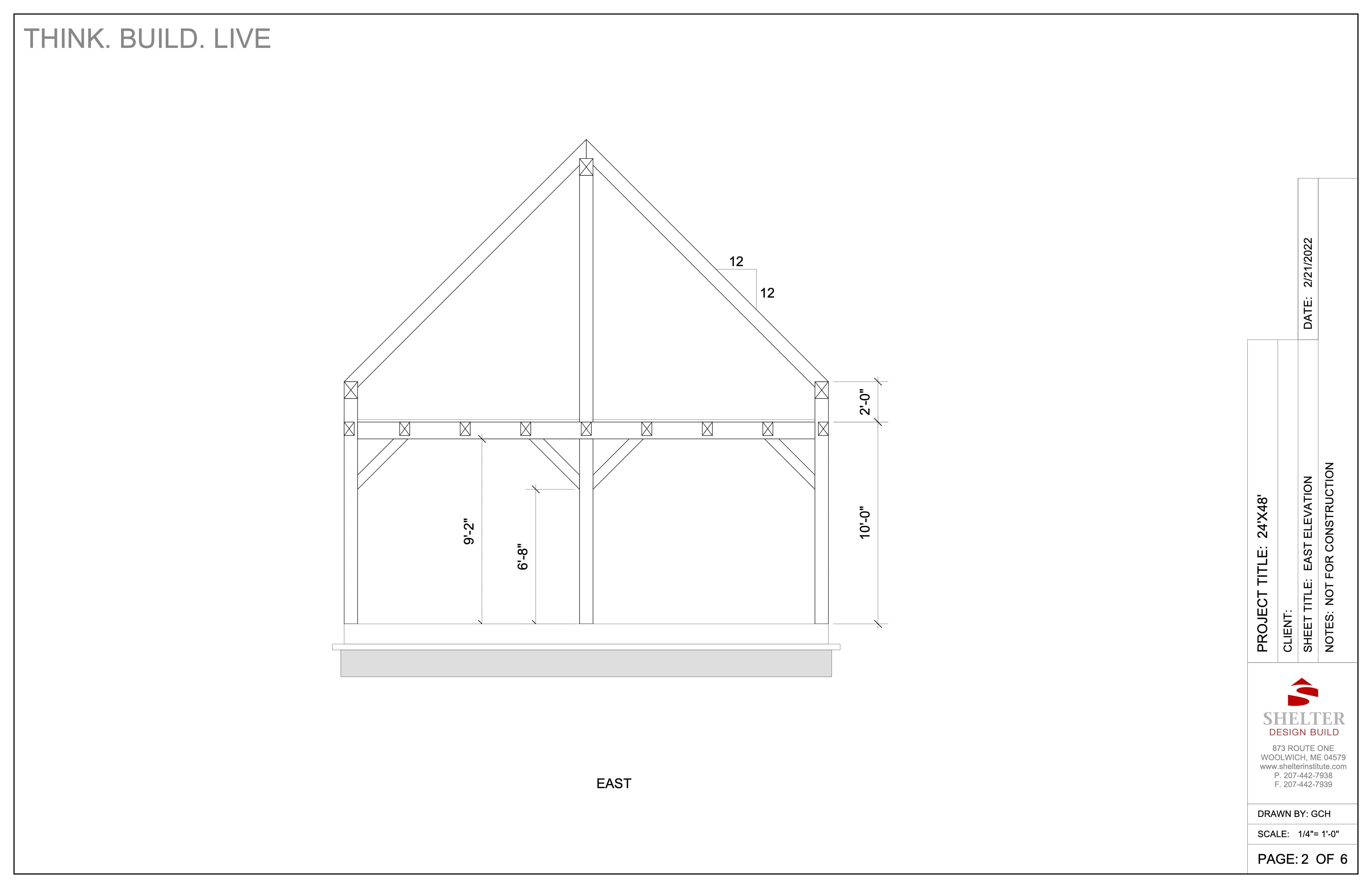

Blueprint of "East" marked Timber Frame Cut Sheet Package 24 x 48 Stable Gable uses Eastern White Pine, dimensions 6'5" W x 19'7" H, crafted with scarf-joint technique. Project details dated 7/3/2023 and notes for the Hennin Kit Frame are in the margin. Brand: Shelter Institute.

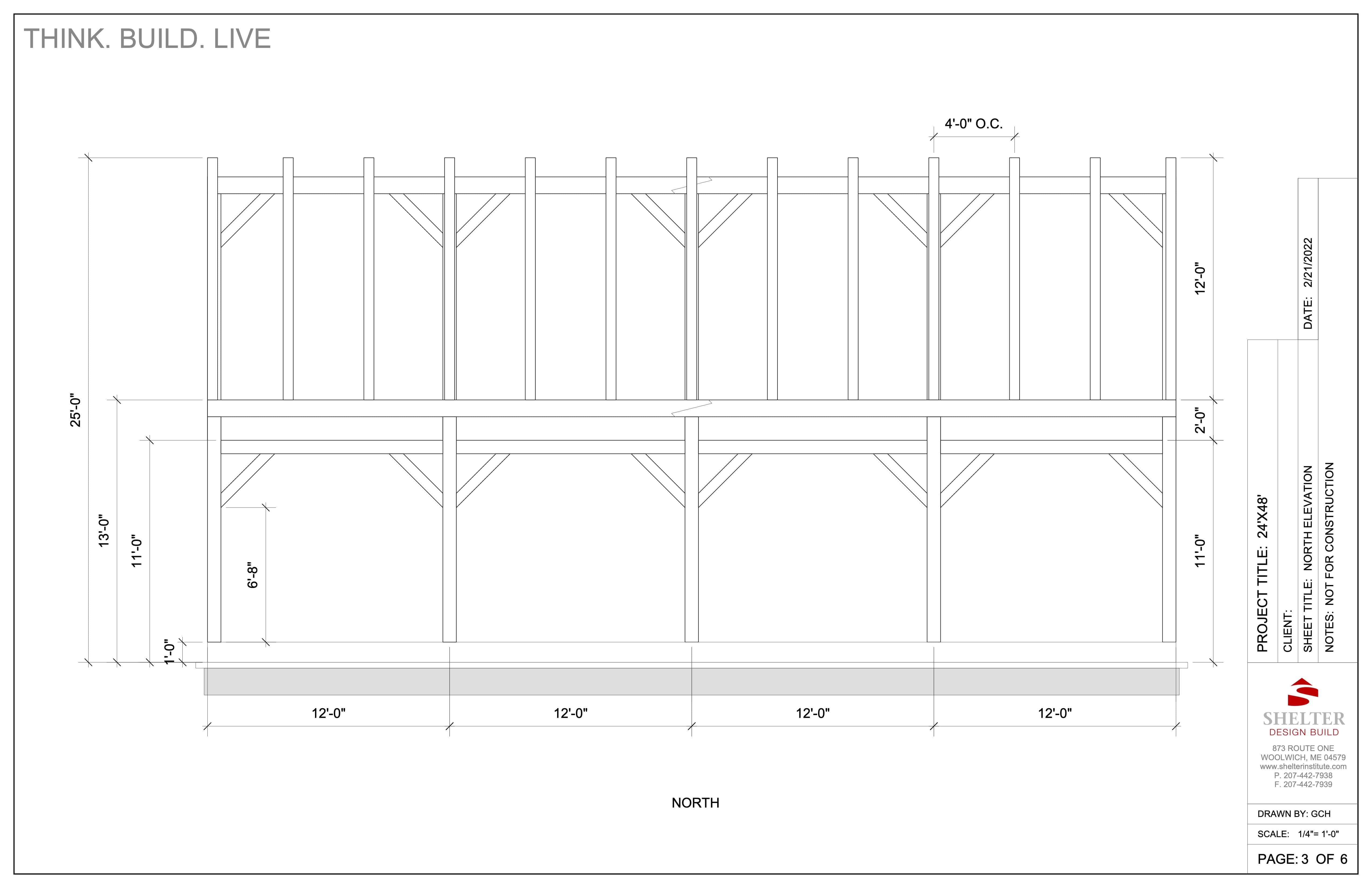

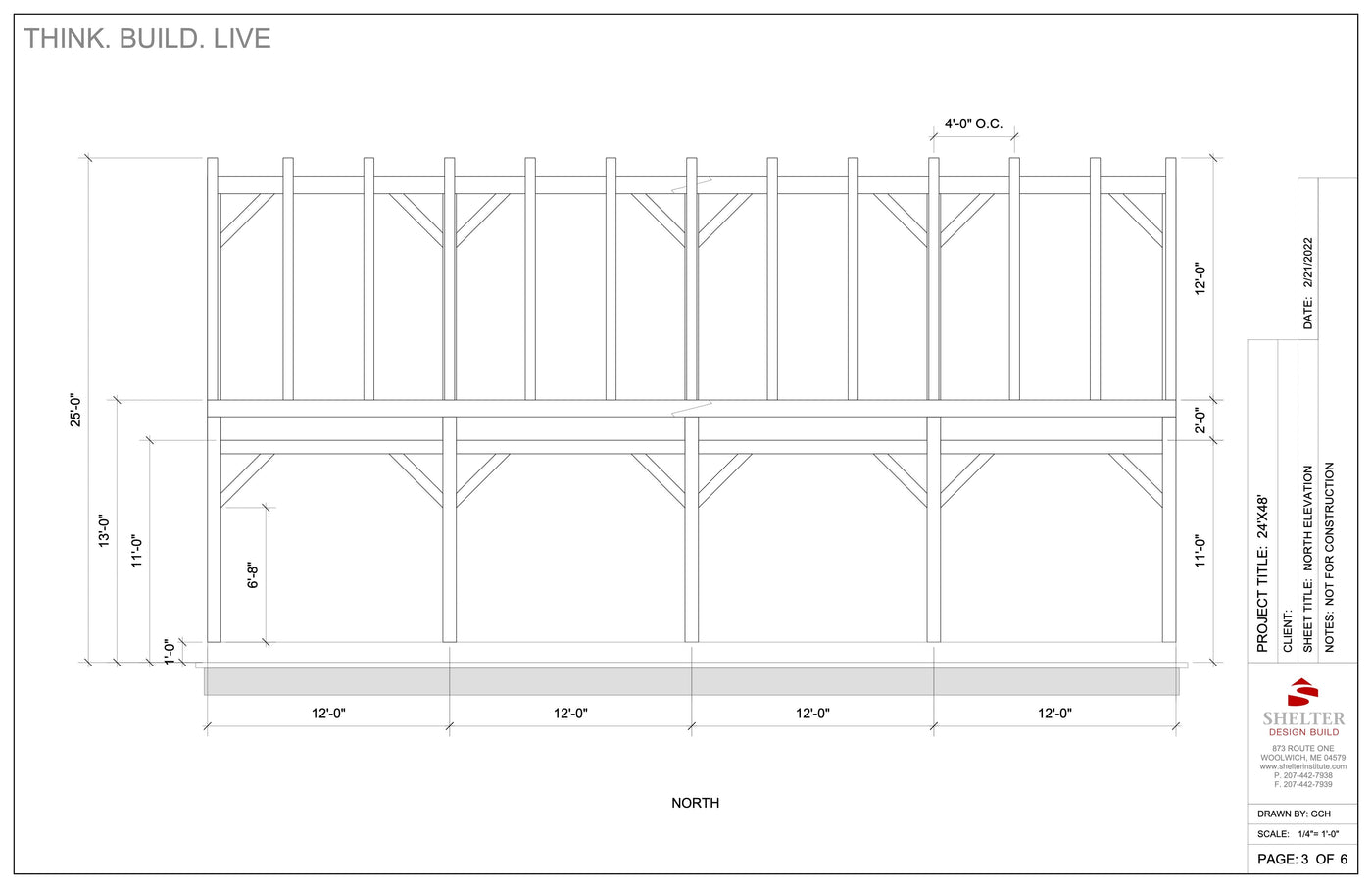

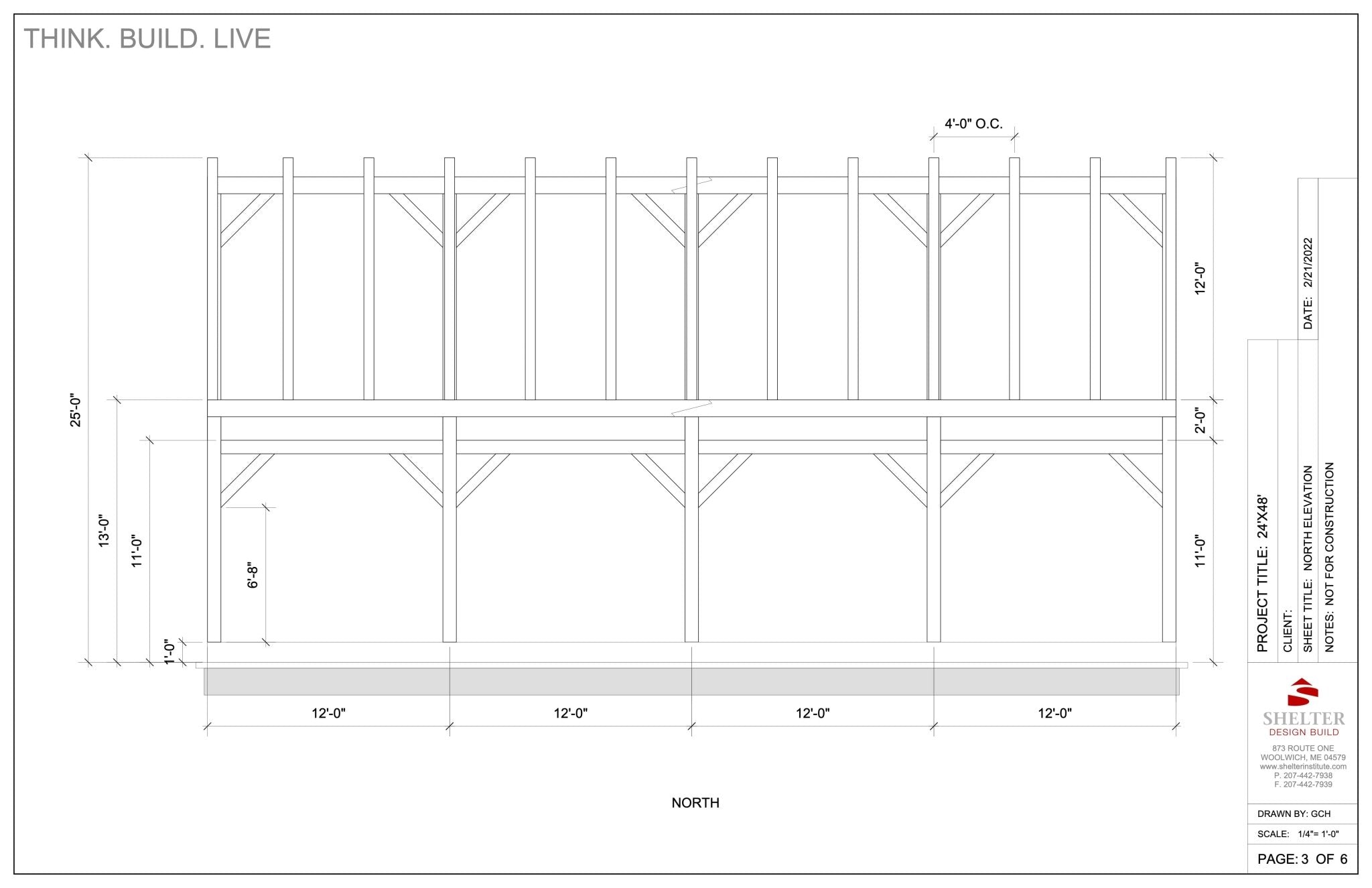

The Timber Frame Cut Sheet Package 24 x 48 Stable Gable by Shelter Institute features a blueprint of the front elevation with support beams and a Hennin Kit Frame. It includes dimensions, title block, and design details like labeled scarf-joint connections for construction.

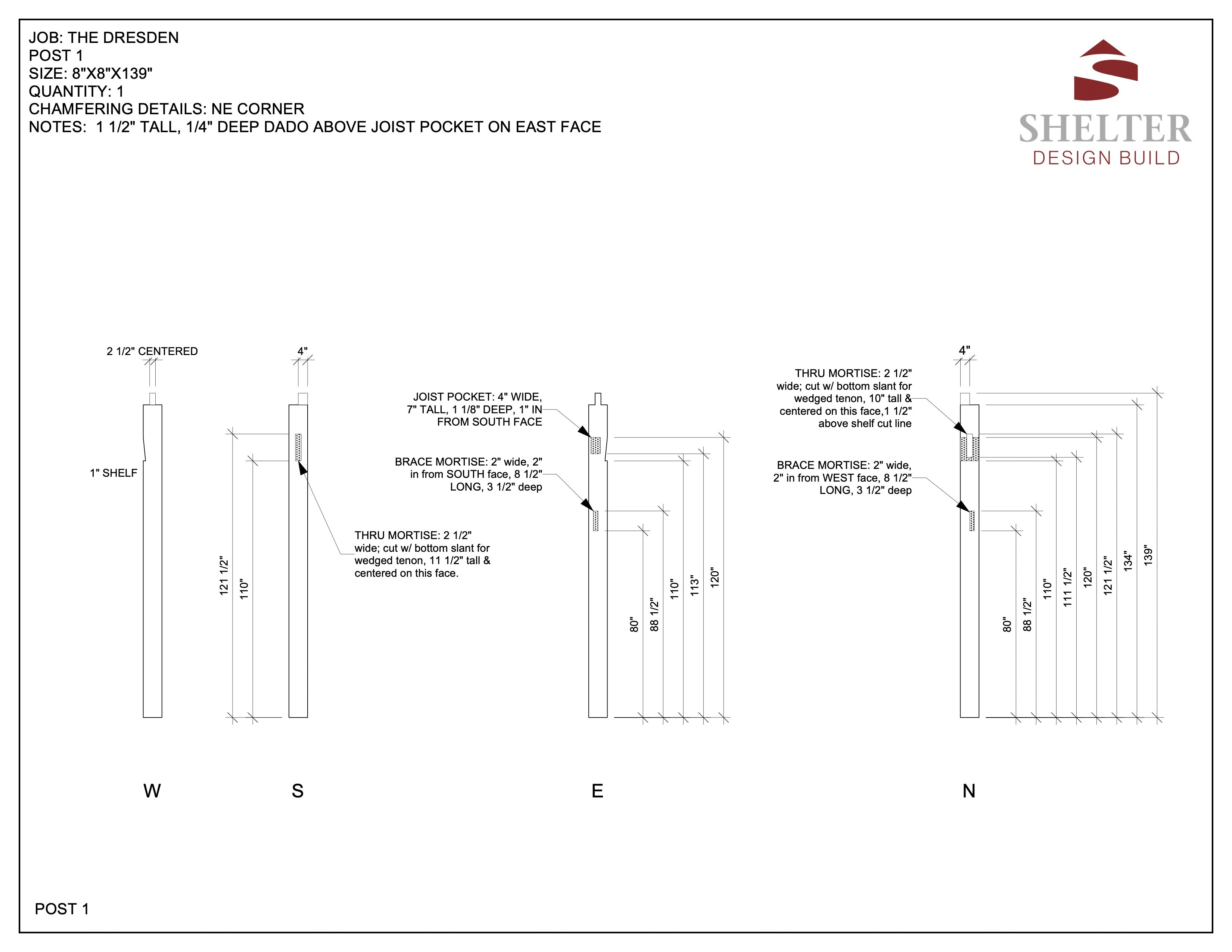

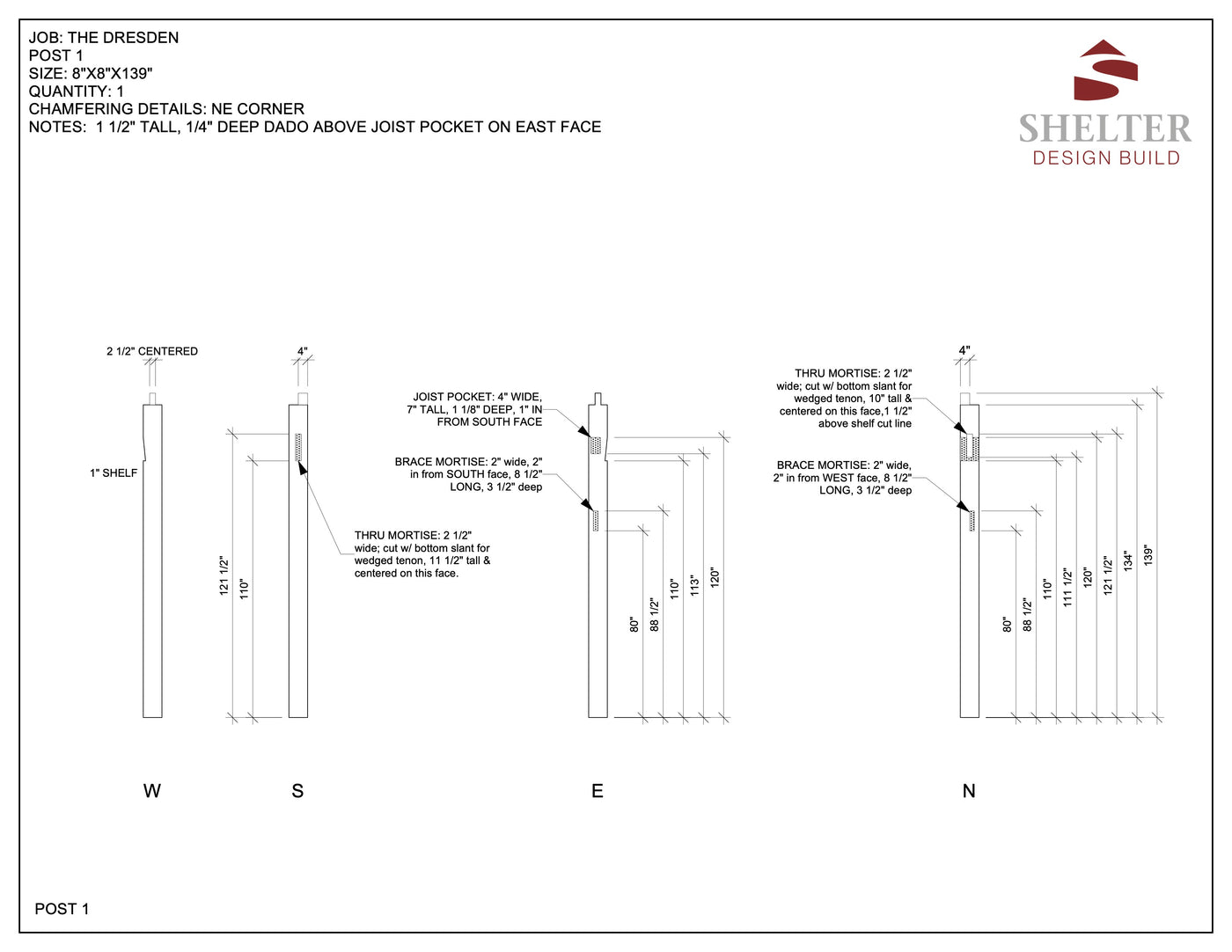

The architectural plan details dimensions and post descriptions, using Eastern White Pine with scarf-joints. Directions are marked (W, S, E, N) for this project by Shelter Institute featuring the Timber Frame Cut Sheet Package 24 x 48 Stable Gable.

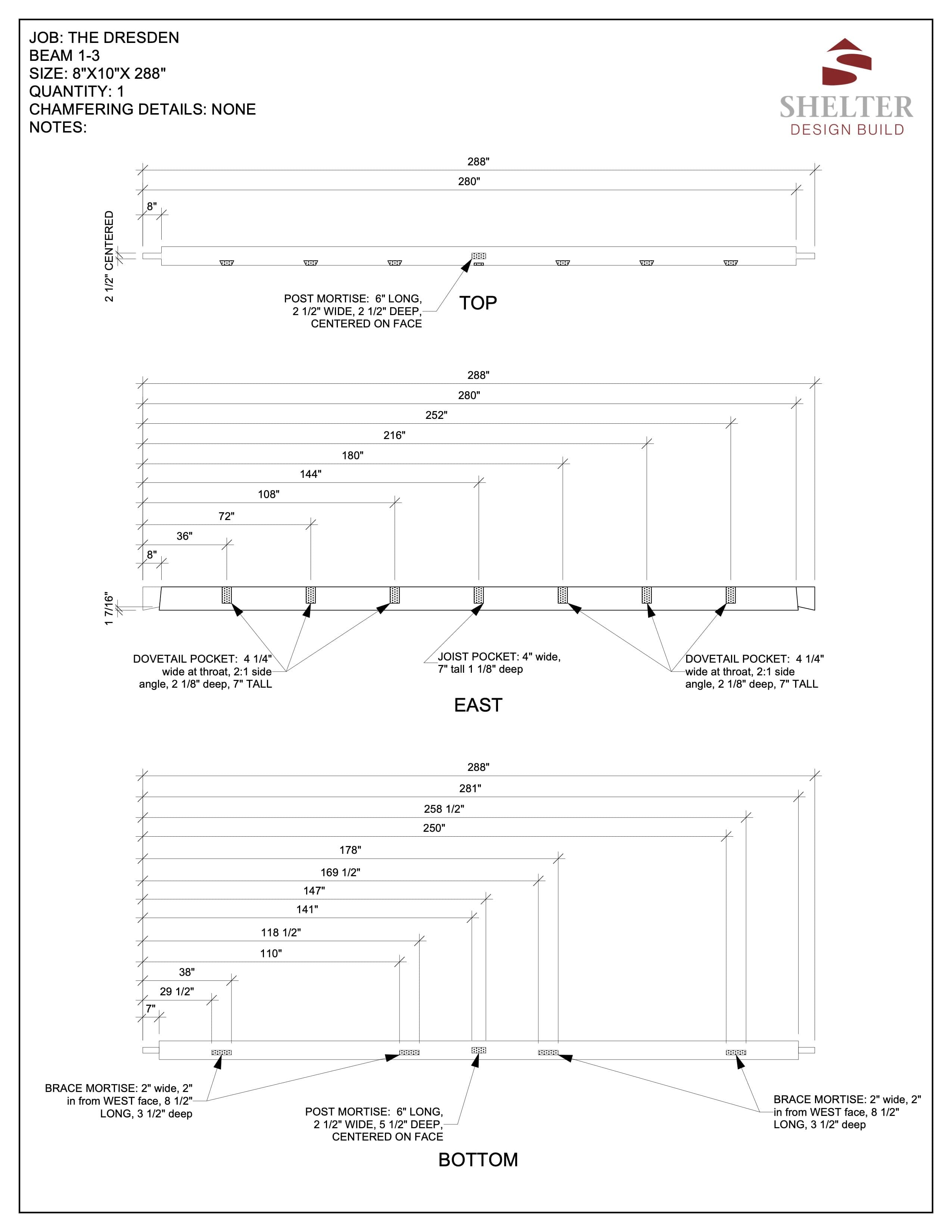

Blueprint "The Dresden" by Shelter Institute features top, east, and bottom views of a structure made from Eastern White Pine. Detailed measurements and specs include innovative scarf-joints for durability. Part of the Timber Frame Cut Sheet Package 24 x 48 Stable Gable collection.

Timber Frame Cut Sheet Package 24 x 48 Stable Gable

$578
Available for pickup
In stock at 873 US-1, Woolwich, ME 04579 · Usually ready in 24 hours

This 24x48 Hennin Kit Frame is designed and engineered to be built out of Eastern White Pine but you can certainly consider alternate wood species. We have encorporated a scarf-joint for the 48-foot span of the top plates and the ridge beam.
